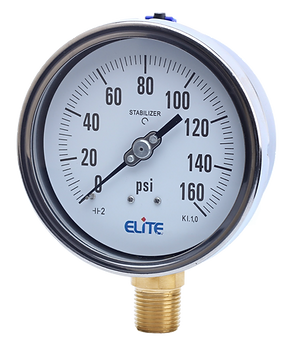

SS Case Brass
Pressure Gauges
P-07
Special Features

Standard Followed ASME-B 40.1 / EN837-1

Cost Effective
Build in Stabilizer Movement
Dry or Liquid Version

40mmTemperature Compensated Blow Out Disc

IP 65

Specifications

Ambient Temperature: -4°F(-20°C) to+150°F(+65°C)

Process Temperature: Max.248°F(120°C)
Operating Pressure Range: 75% of Scale Value
Over Pressure Limit: 125% of Max. Scale Value

Case: AISI 304 SS
Joints: Alloy Brazing/Soldering

Socket: Copper Alloy

Bourdon: Copper Alloy

Movement: Copper Alloy

Dial:Aluminum
Pointer: Micro Zero Adjustable

Window: Safety Glass
Range: Vacuum to 6,000PSI
